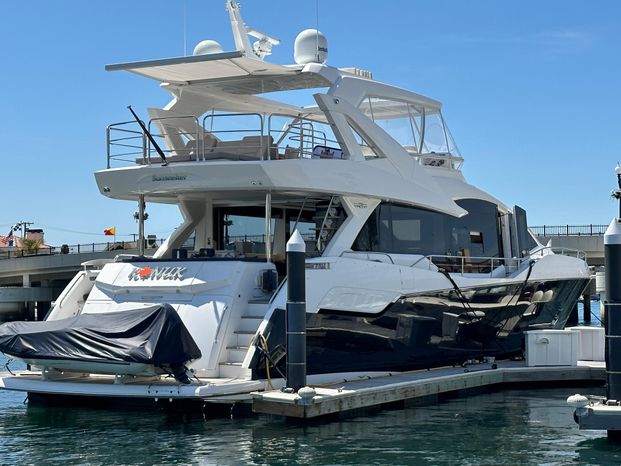

2018 Sunseeker 76 Yacht

The stunning all-new 76 Yacht gives you everything you’d want from a Sunseeker, and so much more.

Performance, style and space – the all-new 76 Yacht is unmistakeably Sunseeker from the exceptional sea-keeping of the very latest deep-V hull design to the class leading space throughout her beautifully appointed decks – this incredible new yacht is without doubt the new benchmark for her class.

Not only does this model cut an impressive silhouette on the horizon, an expanse of glass and sunlight welcomes you on board the 76 Yacht, and the main deck allows you to entertain with an almost 360 degree view of your surroundings.

For life ‘al fresco’ her exterior decks provide unprecedented levels of space and flexibility that can be adapted to suit any needs. On the flybridge choose a spa tub, an allocated spot for your jet-ski or additional sunbeds to maximise the space as you wish. Complement the superyacht feel with any number of layouts including the installation of a cocktail bar.

For even further customisation, your cockpit can be adapted for additional lounge seating or cocktail bar, with the stern equipped for an additional mini beach club, complete with a barbecue grill, fold-out seating and a rain shower, perfect for entertaining family and friends, making the most of the extended bathing platform, which can accommodate a Williams 445 tender.

The 76 Yacht’s impressive layout continues out on the foredeck, where again space is maximised and large twin sunbeds, fore/aft seating and optional refrigeration ensure this a highly sociable area too.

The new 76 Yacht – Freedom uninterrupted.

• Hand-laid GRP
• Gel coat including stripes
• Vinylester skin coat with powderbound mat
• Stitched multi-axial reinforced single-skin bottom
• Balsa-cored hull topsides
• Cored deck and superstructure
• Hull stiffened with longitudinal stringers supported by transverse bulkheads and floors

• Fittings all in stainless steel
• 8 stainless steel deck cleats
• Pulpit and cockpit rails
• Stainless steel fendering with rubber insert
• Stainless steel bow roller with anchor stop
• Stainless steel bow plate
• Delta anchor 50kg and 60m 12mm chain (galvanised)
• Electric bow winch and capstan with deck, cockpit and flybridge controls 24v
• Chain locker – fender stowage
• Curved safety glass windscreen
• 3 x Pantograph windscreen wipers 24VDC and washers
• Fuel fillers port and starboard
• Fresh water filler
• IMCO navigation lights
• Remote spotlight 24v
• Ensign staff and socket
• Fender tie bar under anchor locker lid
• Fore deck storage lockers
• Fore deck seating
• 8 fenders
• 6 warps

• Teak-laid cockpit floor
• Self-draining
• Moulded staircase to flybridge
• Side bar unit with ice maker and cool box
• Stern seating
• Stern safety gates
• Engine room access hatch
• 2 x stern capstan winches 24v and fairleads
• Rope lockers
• Cockpit speakers
• Overhead cockpit lights 24v
• Low-level courtesy lights aft cockpit 24v

• Port-side observation area seating group
• Upholstered helm seats
• Console with walnut type fascia
• Leather rimmed chrome steering wheel
• Hydraulic power steering
• Radar/chart plotter with GPS
• Autopilot
• Electronic speed and depth sounder
• VHF radio with DSC
• Engine instrumentation
• Touch screen monitoring panels (3)
• Rudder indicator
• Trim tab controls
• Compass
• Horn
• Switch panels
• Windscreen wipers with washers
• Demisters
• Cigar lighter
• Glass holders
• Double AC socket
• Hand-held fire extinguisher
• Side opening door to side deck

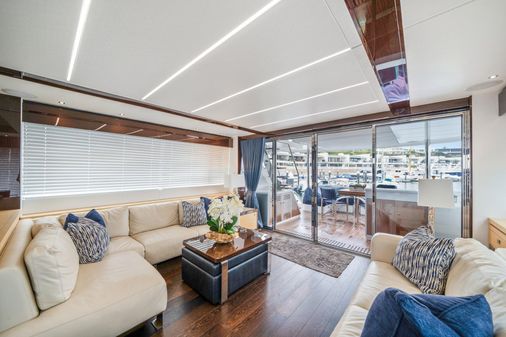

Saloon

• Flush stainless steel glazed sliding door to aft cockpit
• Air conditioning
• Television 55” (2)
• Blu-ray/radio/CD/DVD cinema surround system
• iPod dock/radio for exterior system
• Coffee table
• LED overhead lighting 24v
• 2 x double AC sockets
• Scatter cushions
• Choice of interior finishes and veneers
• Fitted carpet

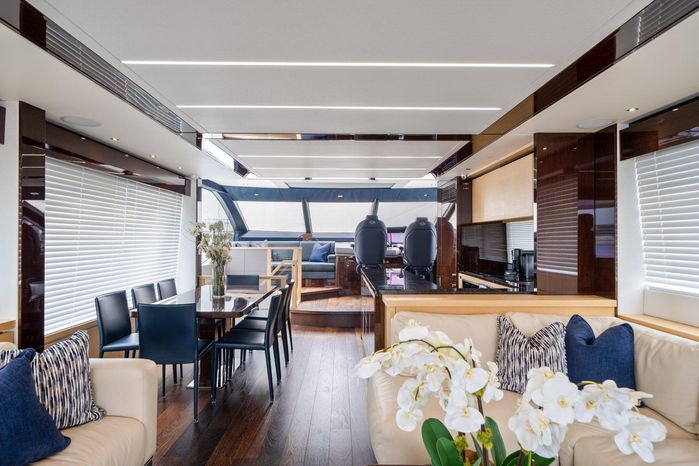

Dining

• Large dining area with formal dining table, outboard bench and 5 chairs
• Bar cabinet with 8 champagne flutes and 8 whisky glasses
• Access stairs to the lower decks
• LED overhead lighting 24v
• 2 x double AC sockets
• Fitted carpet

Aft Master Stateroom

• Panoramic windows with opening ports and blinds
• Double berth
• Under-berth drawers and storage
• Bedside cabinets
• Fixed settee
• Dressing table with mirror and stool
• LED overhead lights 24v
• 2 x reading lights 24v
• 2 x double AC socket
• Television 55”
• CD/DVD player
• Air conditioning
• Walk-in wardrobe
• Door to en suite toilet and shower
• Fitted carpet

Master En Suite Shower Room

• Electric toilet
• Two washbasins, taps and soap dispenser
• Toothbrush and glass holder
• Towel ring and towels
• Mirrored vanity unit
• Separate shower compartment
• Extractor fan
• LED overhead light 24v
• Opening porthole with mosquito screen and blind
• Razor socket 240/110v

VIP Forward Stateroom

• Double berth
• Drawers and storage beneath
• Wardrobe
• Dressing table with mirror and stool
• LED overhead lights 24v
• 2 x reading lights 24v
• 2 x panoramic windows with opening ports and blinds
• Deck hatch with screen
• Two double AC sockets
• Television 40”
• Radio/CD/DVD player
• Air conditioning
• Door to en suite toilet/shower
• Fitted carpet

VIP En Suite Shower Room

• Electric toilet
• Washbasin, taps and soap dispenser
• Toothbrush and glass holder
• Towel ring and towels
• Mirrored vanity unit
• Separate shower compartment
• Extractor fan
• LED overhead light 24v
• Opening porthole with mosquito screen and blind
• Razor socket 240/110v

Starboard Guest Cabin

• Double berth
• Drawers and storage beneath
• Bedside units
• 2 x reading lights 24v
• Wardrobe with mirrored door
• LED overhead lights 24v
• Opening porthole with mosquito screen and blinds
• Two double AC sockets
• Air conditioning
• Television 32”
• Radio/CD/DVD player

• Electric refrigerator and freezer drawers
• 4 burner ceramic hob
• Extractor fan
• Microwave oven
• Stainless steel sink
• Hot and cold water
• Rubbish bin
• 8 place crockery and cutlery set
• 2 x double AC sockets
• Hand-held fire extinguisher
• Dishwasher
• First aid kit

• Twin engines
• Soundproofing throughout engine room
• 2 x aluminium cross balanced fuel tanks with electric sending unit
• Separate fuel filters/water separators
• Automatic fire extinguishers
• Engine room and forward bilge flood alarms
• Automatic bilge pumps
• Automatic flood pumps
• 4 x extractor fans 24v
• Manual bilge pump

• Slow speed generator with underwater silent exhaust and sound box
• Shore power dockside connection
• Galvanic isolator
• 24v and 12v electrical system with full circuit breaker protection
• 8 x engine batteries 24v circuit
• 8 x domestic batteries 24v circuit
• 4 x generator batteries 12v circuit
• Alternator split charging system
• Remote battery switches controlled from locker in cockpit
• Battery charger for 24v circuits
• Battery charger for 12v circuits
• AC Water heater
• AC sockets throughout the boat
• 24v hand light and cable

HULL CONSTRUCTION
Bottom hull: Deep-V planing hull.
Shell: Molded fiberglass reinforced plastic, blue and white gelcoat coatings.
Ceiling: Vinyl
Main Deck: Similar to hull with nonskid patterned pads and teak cockpit and foredeck.
Mooring Cleats: Two 15” cleats on the bow, Four 13” mooring cleats amidships, and four 15” cleats on the stern.

Propulsion System
MACHINERY
• Twin Man V12, twin turbocharged, inboard diesel engines
• Engine Model: D286LE426
• Horsepower: 1528.7 at 2300 RPM
• Port Serial No.: 71047648084763
• Starboard Serial No.: 7104764816476

DRIVE TRAIN
• Two ZF, direct drive, marine transmissions.
• Type: ZF 2050 A
• Port Serial No.: 20063872
• Starboard Serial No.: 50040732
• Ratio: 2.467:1
• Two stainless steel 3” diameter drive shafts with two TIDES MARINE, dripless type         stuffing boxes attached to shaft tubes with double-clamped reinforced hoses.
• Two bronze struts
• Two 5-blade bronze propellers, 970 CM x 1209, Port side is LH and starboard is RH.

EXHAUST SYSTEM
Wet type, stainless steel risers to fiberglass couplings exits through stainless steel below-waterline baffles.

ENGINE CONTROLS
Equipped with MAN electronic engine control, combined forward and reverse gear levers. Three stations on flybridge, pilothouse station and port side cockpit station.

STEERING SYSTEM/TRIM TABS/STABILIZERS
• The vessel is equipped with Hypro, hydraulic steering.
• Two bronze rudders
• Two SIDEWINDER thrusters at bow and stern, serial number#0817833.
• Set of Bennett trim tabs.
• One set Side-Power stabilizers with ABB operating system.

VENTILATION SYSTEM
Natural and mechanical for engine room, with three mechanical Gallinea electric blowers 24 Volt for engine room.  Natural and mechanical type for personnel accommodations with forced draft circulation through air conditioning system, or through door, port light window and vent openings. The vessel is equipped with seven DOMETIC air conditioner/heating units cooled with one Dometic Chiller.

ALARM SYSTEMS
Audible type indicating normal cooling water temperature and/or lubricating oil pressure. Generators are monitored by digital electronic system. Two bilge high water alarms.

ELECTRICAL SYSTEMS
AC Systems
Single, 100 AMP, 120/240 Volt. Glendinning cablemaster, electric rollout and retrieve shore power cord located at starboard side transom. An additional 50 AMP, 120/250 Volt inlet in the same compartment.

DC Systems
12/24 Volt DC power is supplied by 12 series 31, 12 volt wet-type batteries for cranking and house. Batteries are charged by two 24 volt engine alternators; two Victron Energy Orion, 24/12 volt, 70-85 AMP battery chargers, one Quick 100 amp, AC, 24 volt battery charger, and an additional Victron Energy Multi Plus 24 Volt, 70 amp, AC, 120 volt battery charger/inverter. Battery cutoff rotary switches are located on forward bulkhead in the engine room. The system contains AC/DC distribution panels with circuit breakers for branch circuits located on forward and aft engine room bulkheads.

FUEL TANKS
Total capacity: 1585 gallons, two aluminum tanks (792.5 gallon each), located aft in the engine room. Shut off valve: In line.

WATER TANKS
Total Capacity: 370 gallon, one stainless steel tank located below aft stateroom sole. Water Pumps: One US motor, 1 HP, 208-230/115 Volt, water pump with two expansion tanks and Wave stream water filtration system.
Water Heater: One 240 Volt, hot water system.
Water Maker: One 240 Volt, Idromar International Dissalatori water maker

MARINE SEWAGE DISPOSAL SYSTEM
The vessel is equipped with Five Tecma, toilets, 115-gallon plastic holding tank, with electric driven overboard discharge pump and y-valve for land based deck pump-out fitting.

DEWATERING SYSTEMS
• Two 24 volt Rule submersible 2000 GPH bilge pumps with automatic float switches in aft bilge. A high water bilge alarm in aft bilge.
• Two 24 volt Rule, submersible 2000 GPH bilge pumps with automatic float switches in forward engine bilge. A high water bilge alarm in forward bilge.
• One 24 volt, Rule, submersible 2000 GPH bilge pump with automatic float switch in forward bilge.
• Two 24 volt, Gulper, 320 GPH, dry shower sump pumps with automatic float switches in forward bilge.

WASH DOWN SYSTEMS
• One freshwater, hot and cold cockpit shower on swim step.
• One forward chain locker washdown.
• One freshwater washdown in engine room.

ACCOMMODATIONS
From swim step, starboard transom doorway leading to crew quarters furnished with a single berth aft and queen berth to port, storage lockers, full berth is starboard and centerline access to engine room. From main aft deck, large sliding glass doors to main saloon furnished with L-shaped couch to starboard facing large settee to port, forward in the space is galley and lower drive station to starboard and dinning table with companionway stair to lower living spaces to port. From companionway stair, Centerline king berth master stateroom with in suite head is aft, forward #1 guest cabin with queen berth and access to a full head is starboard, across the companionway is #2 guest cabin with twin single berths and in suite full head. #3 guest suite with centerline queen and full head is located in bow section.

ESCAPE HATCHES:
There is one escape hatch in forward cabin above berth.

APPLIANCES/ACCESSORIES
Crew, aft deck, Cockpit: Verdigo fridge and freezer, Samsung TV, Fusion AM/FM/Blue tooth, Miele washer and dryer. Can electric griddle, Dometic refrigerator, Vertrifrigo Ice maker.
Flybridge: Kinyon electric grill, Dometic refrigeration, Verdigo ice maker, Dometic deep freezer, two electric canopies. Isotherm refrigeration/ice maker on the bow.
Main saloon: Smeg 4 burner stove, Miele electric oven, Smeg fan, Miele dish washer (, Frigoboat refrigerator/Freezer, Electric sunroof/ shade and window coverings, Two Samsung, 40” TVs, Cabins: (4) Samsung TV.
Cabins: (4) Samsung TV.

NAVIGATION AIDS

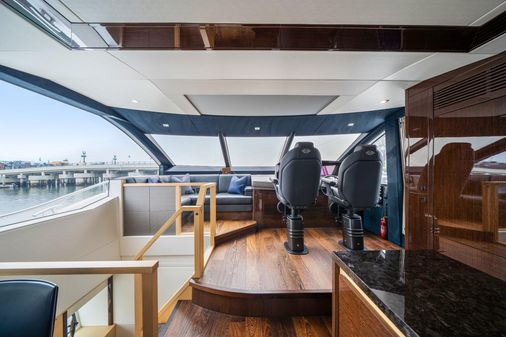

Pilothouse
•One Ritchie, 4” magnetic compass (serviceable condition)
•(2) SIMRAD, Model NSS evo 3, 15” monitors GPS, MAP, Depth, Radar
•SIMRAD, 15” Systems display, fuel, water, holding, generators.
•(2) SIMRAD hydraulic speed, Rudder angle/depth
•BONING MMDS-CLS 6.5 engine oil/temperature electronic monitor
• SIMRAD autopilot

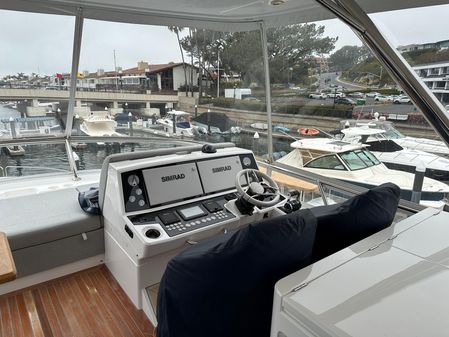

Flybridge
• (2) SIMRAD NSS evo 3, 15” repeaters
• SIMRAD autopilot (Operational)
• (2) SIMRAD hydraulic speed, Rudder angle, depth.
• SIMRAD autopilot

COMMUNICATION
(2) SIMRAD VHF radios

GROUND TACKLE
• One 130 lb. Delta anchor with unknown length of rode and chain. Vessel equipped with stainless steel bow plate. • One LEWMAR electric windlass.

GENERATOR #1 Lower unit
• Cummins Onan diesel
• Model: 29MDKDS-8127A
• Serial number: C170157859
• Volts: 120/240V  29 kW
• Hours: 99

GENERATOR #2 Upper unit
• Cummins Onan, diesel
• Model: 29MDKDS-8127A
• Serial number: I150872320
• Volts: 120/240V
• 29 kW
• Hours: 103
